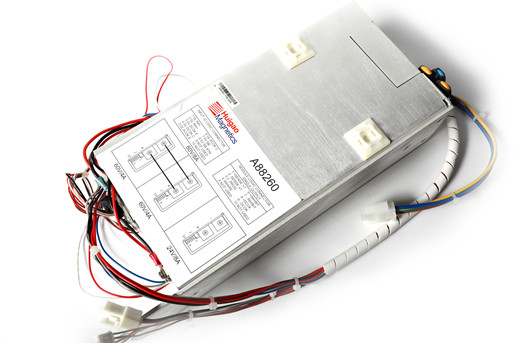

AWM700T60V(4A)SF
▲ 国际通用全范围交流输入
▲ 内置主动PFC功能
▲ 保护种类：短路/过电压/过温
▲ 可配置3路，总功率不超过700W
▲ 冷却方式：风冷
▲ 认证情况：通过 IEC/EN61010-1,TUV/CE Mark (LVD,EMC)
- 产品规格
- 档案下载
| Input 输入 | |||||
| Input Voltage Range 输入电压 | 100-240VAC | ||||
| Input Frequency 输入频率 | 47-63 Hz | ||||
| Input Current (115VAC/230VAC) 输入电流 | 7A/3.5A | ||||
| Inrush Current (230VAC/ 25℃) 浪涌电流 | 40A | ||||
| Leakage Current 漏电流 | <1.5mA at 230VAC, 50Hz | ||||
| Power Factor (Typ) (230VAC full load) 功率因数 | 98% | ||||
| Efficiency (Typ) (230VAC) 效率 | 80% | ||||
| Output 输出 | |||||
| Rated Power (115/230VAC) 额定功率 | 500W,700W | ||||
| Line Regulation 线性调整率 | ±0.1% | ||||
| Load Regulation 负载调整率 | ±1% | ||||
| Start up Time 启动时间 | 3000ms (at full load) | ||||
| Rise Time 上升时间 | 40ms (at full load) | ||||
| Hold up Time (Typ) 保持时间 | 50ms (at full load) | ||||
| MAX Ripple & Noise (115VAC/230VAC) 最大纹波和噪声 | 1% | ||||
| Temperature Coefficient (0-50℃ ) 温度系数 | ± 0.03%/℃ | ||||
| Overvoltage Protection 过电压保护 | 115-130%, Latching (unit shutdown), cycle AC input to reset | ||||
| Overtemperature Protection 过温保护 | Automatic recovery | ||||
| Short Circuit Protection 短路保护 | Automatic recovery | ||||
| Configurable Module 可配置模块 | Output Voltage 输出电压 | Rated Current 输出电流 | Accuracy 精度 | ||
| 240W | 60V | 4A | ±2% | ||
| 48V | 5A | ±2% | |||
| 24V | 10A | ±2% | |||
| 15V | 16A | ±2% | |||
| 12V | 20A | ±2% | |||
| 200W | 48V | 4.2A | ±2% | ||
| 24V | 8.4A | ±2% | |||
| 15V | 13.4A | ±2% | |||
| 12V | 16.7A | ±2% | |||
| 150W | 48V | 3.2A | ±2% | ||
| 24V | 6.3A | ±2% | |||
| 15V | 10A | ±2% | |||
| 12V | 12.5A | ±2% | |||
| 60W | 48V | 1.25A | ±2% | ||
| 24V | 2.5A | ±2% | |||
| 15V | 4A | ±2% | |||
| 12V | 5A | ±2% | |||
| Environmental 环境 | |||||
| Operating Temperature 工作温度 | -20~+70℃ | ||||
| Storage Temperature 储存温度 | -20~+85℃ | ||||
| Operating Humidity (non condensing) 工作湿度 | 5%-95% RH | ||||
| Cooling 冷却方式 | Forced air | ||||
| Altitude 工作海拔高度 | 3000m | ||||
| Withstand Voltage (For 1 minute) 耐压 | Input-Output: 3kVAC Input-PE:1.5kVAC Output-PE: 0.5kVDC | ||||
| Vibration (Non Operating) 耐震动 | 10-55Hz(1min sweep). 19.6m/s2; x,y,z for 1 hour each | ||||
| Shock 耐冲击 | 30g peak，half sine，6 axes | ||||
| EMC & Safety 安规和电磁兼容 | |||||
| Conducted & Radiated EMI 射频 | Designed to meet EN55011/EN55032-B,FCC-ClassB | ||||
| Harmonic Current 谐波电流 | EN61000-3-2 class A； EN61000-3-2 class C for loads ≥20% | ||||
| Voltage Flicker 电压闪烁测试 | EN61000-3-3 class A | ||||
| ESD 静电放电扰度 | EN61000-4-2,Level 3,Class A | ||||
| Radiated Susceptibility 辐射抗扰度 | EN61000-4-3,Level 3,Class A | ||||
| Electrical Fast Transient Burst 脉冲群抗扰度 | EN61000-4-4,Level 3,Class A | ||||
| Surge Susceptibility 浪涌 | EN61000-4-5,Level 3,Class A | ||||
| Conducted Susceptibility 传导抗扰度 | EN61000-4-6,Level 3,Class A | ||||
| Magnetic fields 磁场抗扰度 | EN61000-4-8,Level 3,Class A | ||||
| Voltage Dips and input Interruptions 瞬跌与中断 | EN61000-4-11,0%,10ms;0%,20ms;70%,500ms;0%,5s;Class A B B B | ||||
| Safety Agency Certifications 安全认证 | IEC/EN61010-1,TUV/CE Mark (LVD,EMC) | ||||
| Other 其他 | |||||
| Weight (typ) 重量 | 1000g | ||||
| Size (LXWXH) (mm) 尺寸（长*宽*高） | 285×127×63.4 | ||||
| Connectors 连接器型号 | |||||
| Warranty 保修期 | Three years | ||||
